Simulated Packaging Transportation for Test Equipment Slope Resistance Impact Carton Box Incline Impact Machine

Name: Simulated Packaging Transportation for Test Equipment Slope Resistance Impact Carton Box Incline Impact Machine
Brand: HUAKAI
Price: 10 USD

Wholesale Simulated Packaging Transportation for Test Equipment Slope Resistance Impact Carton Box Incline Impact Machine from china suppliers

Price : $10,000-16,000 / piece

Brand Name : HUAKAI

power : 1500W

Accuracy Class : High Accuracy

Voltage : 380 V

warranty : 1 Year

Maximum Sliding Length : 1500mm

Transmission Device : Lifting Device + Reducer + Releaser

MOQ : 1 piece

Protection Class : IP65

Place of Origin : Guangdong, China

Type : Testing Machine

Impact Panel Material : Wooden

Accuracy : Impact Velocity Range (m/s): 1.0~1.7

Application : Impact Testing

customized support : OEM, OBM

Contact Now

Product Overview

Simulated Packaging Transportation for Test Equipment Slope Resistance Impact Carton Box Incline Impact Machine

The Inclined Impact Testing Machine is designed to simulate the impact resistance of product packaging under real-world conditions such as handling, shelving, motor sliding, vehicle loading/unloading, and transportation. It is widely used by research institutes, universities, packaging technology testing centers, packaging material manufacturers, foreign trade, and logistics departments as a common equipment for inclined impact testing.
Functions & Application Areas
* Functions: Simulates inclined plane impact to evaluate packaging resistance to transport-related shocks and damages.
* Applications: Ideal for packaging manufacturers, testing centers, logistics companies, transportation departments, and research institutions conducting packaging safety evaluations.

Product Paramenters

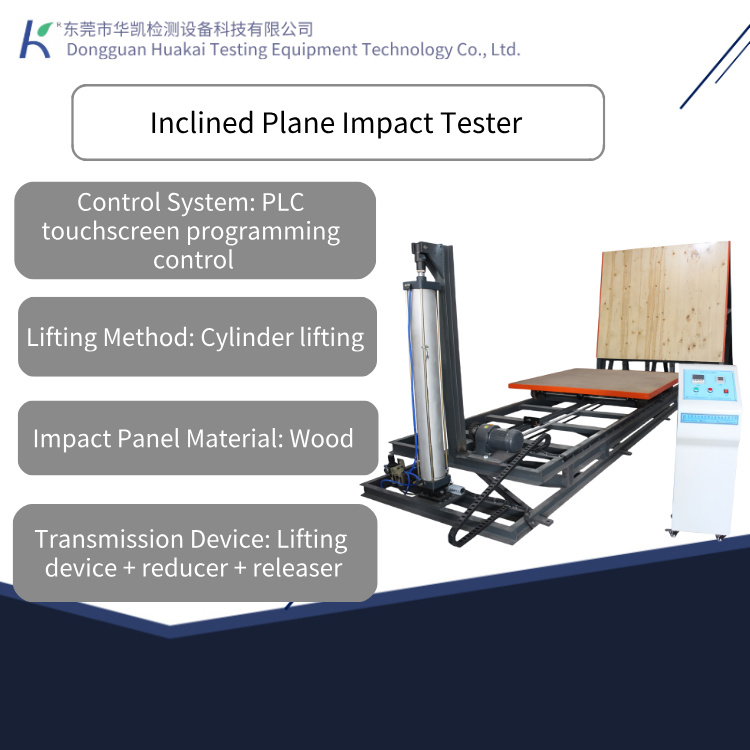

Parameter	Specification
Control System	PLC touchscreen programming control
Lifting Method	Pneumatic cylinder lift
Load Capacity	500kg
Impact Panel Size (W×H)	1100 × 1600mm
Impact Panel Material	Wood
Max. Sliding Length	1500mm (adjustable, excluding trolley size)
Impact Speed Range	1.0 – 1.7 m/s
Impact Angle	10° ± 1
Impact Speed Error	≤ ±5%
Trolley Table Size	1000 × 1000mm
Max. Specimen Size	W1000 × D1000 × H1000mm
Drive System	Lifting device + reducer + release mechanism
Power Supply	Three-phase 380V, 50/60Hz
Working Environment	Temperature 0–40℃, Humidity ≤80% (non-condensing)

Products Description

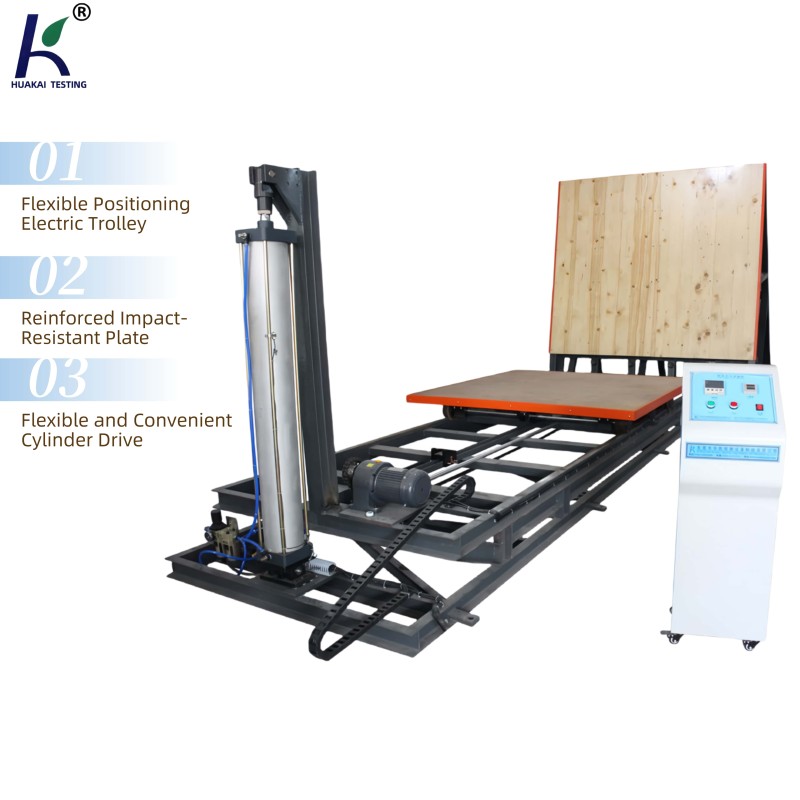

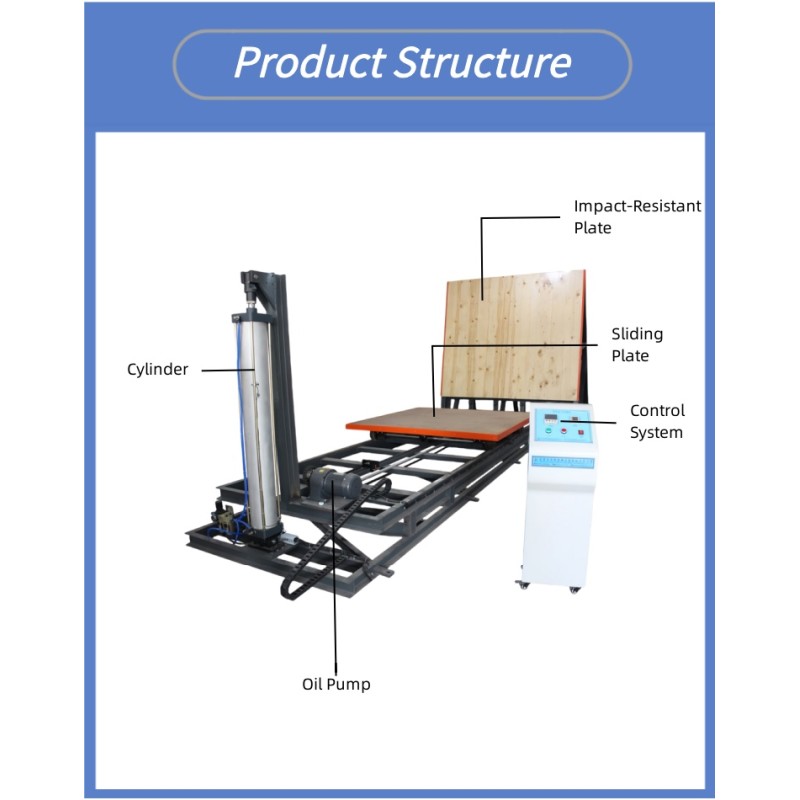

Structure & System Configuration
The testing machine consists of:
- A flexible positioning electric trolley for easy fixing and speed adjustment.
- Low-height trolley design for convenient specimen installation.
- Reinforced impact panel to ensure durability and structural stability.
- Adjustable trolley table surface with pneumatic cylinder angle adjustment for flexibility.
- Simple installation requiring only ground fixation without complex setup.
Applicable International / National Standards
* GB/T 48577-1992 (Horizontal Impact Test for Packages)

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
