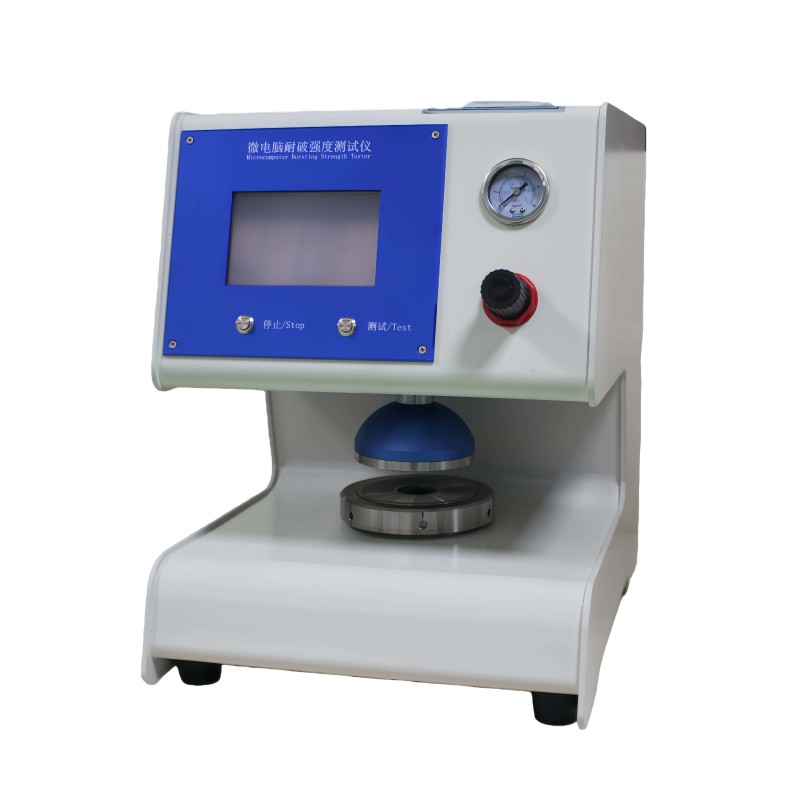

Paperboard Bursting Strength Tester Corrugated Paper Burst Testing Machine Packaging Material Bursting Resistance Tester

Name: Paperboard Bursting Strength Tester Corrugated Paper Burst Testing Machine Packaging Material Bursting Resistance Tester
Brand: HUAKAI
Price: 1 USD

Wholesale Paperboard Bursting Strength Tester Corrugated Paper Burst Testing Machine Packaging Material Bursting Resistance Tester from china suppliers

Induction Method : Pressure Transducer

Accuracy : Accuracy: ±0.5%

customized support : OEM, OBM

Protection Class : IP65

warranty : 1 Year

Brand Name : HUAKAI

MOQ : 1 piece

Voltage : 220 V

Indication Method : Digital Display

Accuracy Class : High Accuracy

Type : Testing Machine

power : 800W

Operation Mode : Full Automatic

Price : $1,200-2,500 / piece

Place of Origin : Guangdong, China

Application : Compression Testing, Strength Testing

Contact Now

Product Overview

Paperboard Bursting Strength Tester Corrugated Paper Burst Testing Machine Packaging Material Bursting Resistance Tester

Automatic bursting strength tester is designed to determine the bursting strength of corrugated paper, paperboard, cartons, leather, synthetic leather and textile materials. The equipment is widely used in packaging, paper products, electronics, appliance and furniture industries for quality control.
The machine adopts high precision pressure sensors and automatic hydraulic boosting system to ensure accurate and repeatable test results. With automatic clamping system and digital pressure display, the tester significantly improves testing efficiency and reduces human error.
Functions & Applications
* Corrugated carton bursting strength testing
* Paper and paperboard strength testing
* Packaging material quality inspection
* Leather and synthetic leather testing
* Textile material bursting resistance testing
* Quality control in packaging manufacturing
* Laboratory material strength verification

Product Paramenters

Item	Specification
Sensing method	Pressure transducer
Display	Digital display
Operation mode	Fully automatic
Force units	kPa / psi / kgf/cm² (switchable)
Measuring range	250–5600 kPa
Clamping ring material	SUS304 stainless steel
Clamping ring inner diameter	Upper & lower φ31.5±0.05mm
Hydraulic medium	85% glycerin + 15% distilled water
Pressurizing speed	170±10 ml/min
Accuracy	±0.5%
Specimen clamping force	>690 kPa
Machine size	445×425×525mm
Weight	70kg
Power	120W
Power supply	AC220V±10% 50Hz

Products Description

Structure & System Configuration
* High precision pressure sensor system
* Automatic hydraulic pressure boosting device
* Automatic specimen clamping mechanism
* Digital pressure display interface
* SUS304 stainless steel clamping rings
* Stable hydraulic transmission system
* User friendly control panel
Standards
* JIS L1004
* JIS L1018
* JIS L1031
* JIS K6328
* JIS P8131
* JIS P8112
* ASTM D2210
* TAPPI T403
* ISO 2759
* GB/T1539
Standard Configuration
* Rubber diaphragm ×1
* Calibration sheets ×10
* Glycerin bottle ×1
* Tool wrench ×1

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
