ISTA Double-wing Paper Packaging Drop Impact Testing Machine and Carton Free Fall Drop Testing Equipment

Name: ISTA Doublewing Paper Packaging Drop Impact Testing Machine and Carton Free Fall Drop Testing Equipment
Brand: HUAKAI
Price: 1 USD

Wholesale ISTA Double-wing Paper Packaging Drop Impact Testing Machine and Carton Free Fall Drop Testing Equipment from china suppliers

Brand Name : HUAKAI

Place of Origin : Guangdong, China

Type : Testing Machine

warranty : 1 Year

Drop Base Plate : Steel Plate

Overall Dimensions : 1200*1400*1950mm

Protection Class : IP65

power : 1000W

Price : $1,800-2,800 / piece

Accuracy Class : High Accuracy

customized support : OEM, OBM

Drop Panel Area : 1200*1400mm

MOQ : 1 piece

Accuracy : Drop Height: 400~1500mm

Application : Drop Testing

Voltage : 380 V

Maximum Test Piece Weight : 60kg

Contact Now

Product Overview

ISTA Double-wing Paper Packaging Drop Impact Testing Machine and Carton Free Fall Drop Testing Equipment

The Double Wing Drop Test Machine is specially designed to evaluate the resistance of packaging during handling, loading, and transportation. It accurately simulates real-life drop conditions to assess the shock resistance strength of packaging and verify the reliability of packaging design. With digital height display, precise drop control, and stable lifting, it ensures reliable and repeatable test results.
Functions & Applications
This equipment is widely used for testing cartons, packages, and products to determine their ability to withstand drops from various heights. It is applicable for packaging design validation, quality inspection, and transport simulation testing, making it an essential tool for packaging manufacturers, quality control labs, and logistics companies.

Product Paramenters

Item	Specification
Model	HK-216
Transmission System	1/2HP motor with 20:1 reducer
Controller	Shilin drop release electromagnetic device
Limit Protection	Upper and lower travel switches
Display	Digital height display
Drop Height	400 ~ 1500 mm
Max. Specimen Weight	60 kg
Drop Plate	Steel plate
Drop Panel Area	1200 × 1400 mm
Minimum Arm Distance	200 mm
Drop Error	±5 mm
Drop Plane Error	<1°
Machine Dimensions (L×W×H)	1200 × 1400 × 1950 mm
Control Box Dimensions (L×W×H)	350 × 350 × 1100 mm
Machine Weight	Approx. 450 kg
Power Supply	AC 220V, 50Hz

Products Description

Structure & System Configuration

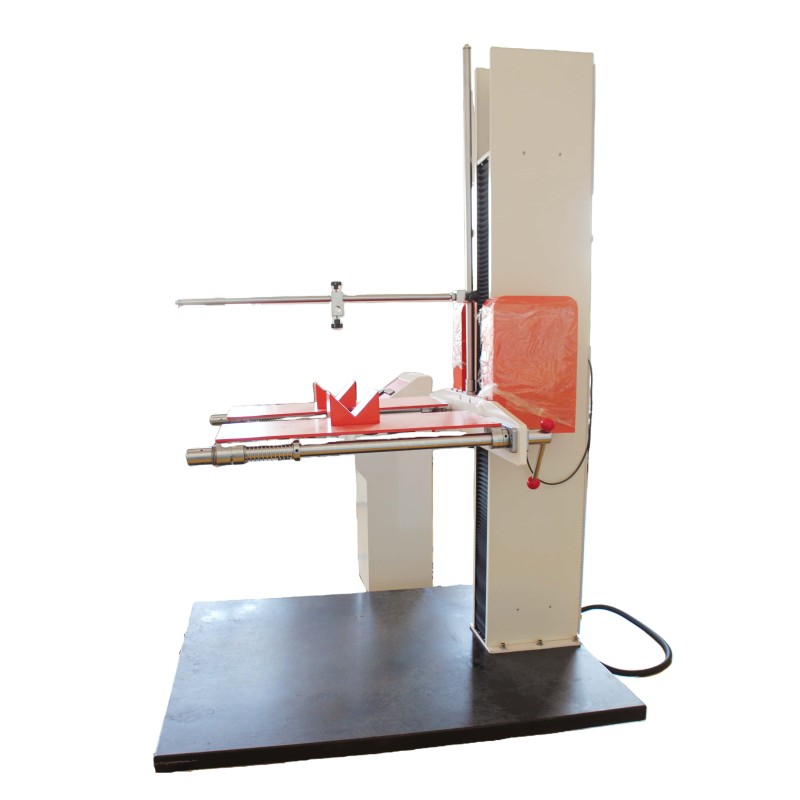

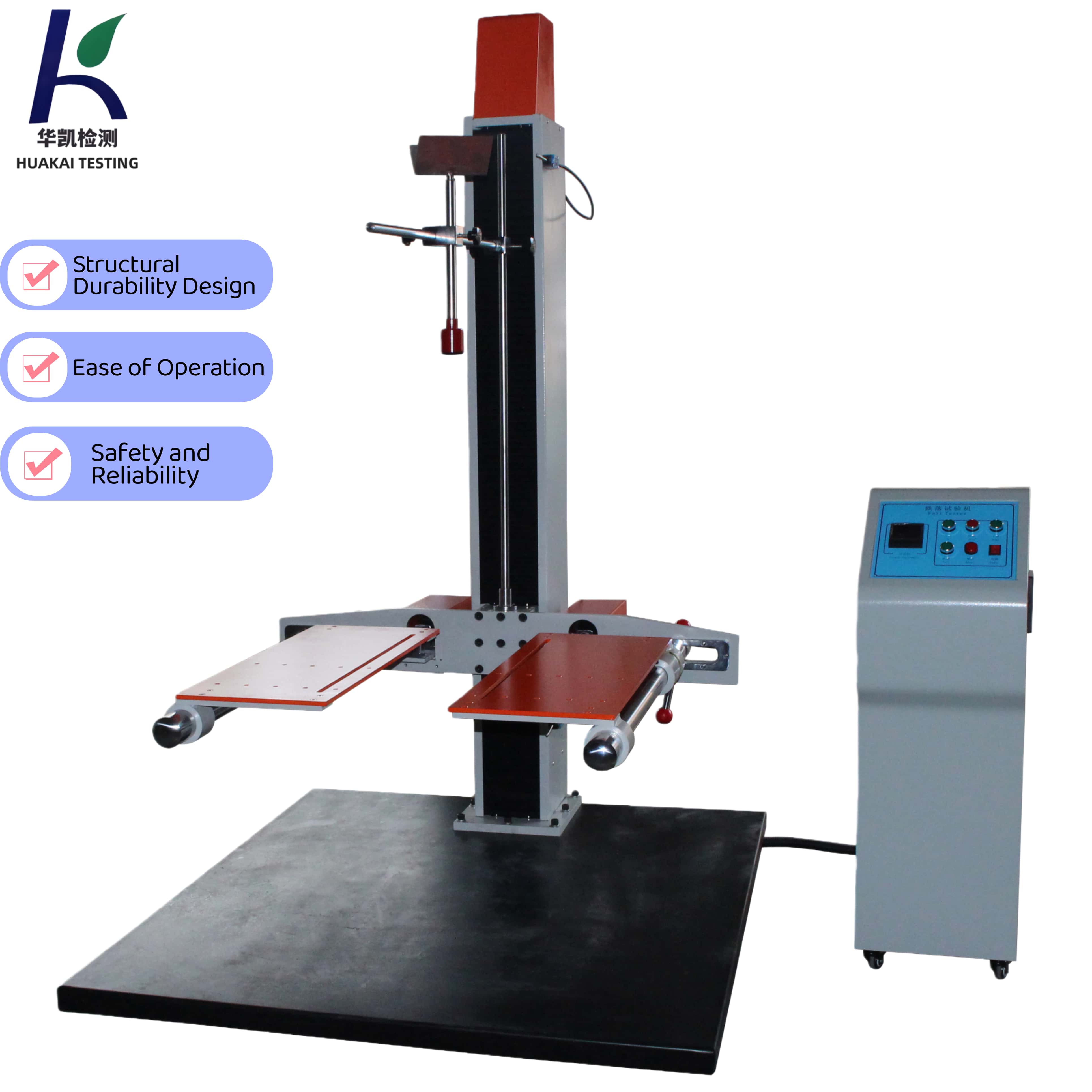

The machine consists of a stable dual-column structure with motor-driven lifting, electromagnetic drop control, and a reinforced steel drop platform. Its precision digital height display ensures accurate drop positioning. The drop arms are designed for easy operation and minimal error, providing stable and consistent test results.
Compliance with Standards
The HK-216 Double Wing Drop Test Machine complies with packaging and transportation test standards for evaluating drop resistance and reliability of packaging designs.

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
