High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment

Product Categories
Dongguan Huakai Test Equipment Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment

Control Method : Color Touchscreen

Price : $3,100-5,000 / piece

customized support : OEM, OBM

warranty : 1 Year

MOQ : 1 piece

Voltage : 220 V

Frequency : 50Hz

Accuracy Class : High Accuracy

Accuracy : Testing speed: 0~20 times/min, adjustable

power : 750W

Type : Testing Machine

Brand Name : HUAKAI

Place of Origin : Guangdong, China

Application : Vibration Testing, Impact Testing

Protection Class : IP65

Dimension : 260*110*110cm

Contact Now

Product Overview
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment

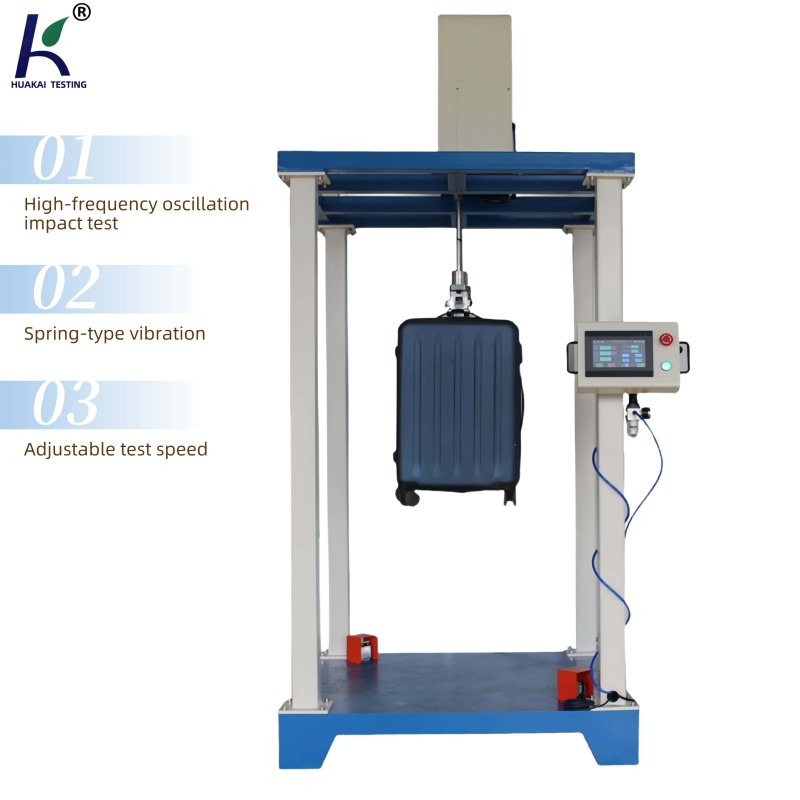

The Luggage Oscillating Impact Tester is a professional simulation equipment designed to test the durability of luggage handles, pull rods, straps, and stitching. By simulating the repeated impacts and shocks experienced during daily use and transportation, it helps manufacturers identify weaknesses and ensure their products meet the highest quality standards, thereby reducing returns and enhancing brand reputation.
Product Paramenters
Parameter
Specification
Model
HK-510
Control Mode
Color Touch Screen HMI
Impact Height
0 ~ 8 inches (0 ~ 203 mm) Adjustable
Oscillation Method
Spring-type (1.79 kg/mm)
Testing Speed
0 ~ 20 cycles/min (Adjustable)
Count Setting
0 ~ 999,999 (Auto stop upon completion)
Safety Feature
Auto Stop upon Sample Fall
Power Supply
AC 220V, 50Hz
Dimensions (L*W*H)
2600 × 1100 × 1100 mm
Products Description
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
Features & Applications
Main Features:
* Adjustable Impact Height: Impact height is adjustable from 0 to 8 inches (0 ~ 203 mm), allowing for different test intensities.
* Precise Speed Control: Testing speed is adjustable from 0 to 20 cycles per minute.
* High-Capacity Counter: The count can be set from 0 to 999,999 cycles, and the machine will stop automatically upon completion.
* Spring Oscillation System: Utilizes a spring-type (1.79 kg/mm) mechanism to generate reliable and consistent impact force.
* Intelligent Safety Protection: Features an automatic stop function if the test sample falls off during operation.
* User-Friendly Control: Equipped with a Color Touch Screen HMI for intuitive operation and parameter setting.
Main Applications:
* Durability testing for handles, pull rods, buckles, and stitching of various luggage and bags.
* Ideal for testing suitcases, handbags, backpacks, and other travel goods.
* Essential for Quality Control and R&D departments in luggage manufacturing.
* Testing in accordance with national standards QB/T 2922-2007, QB/T 2155-2010, and QB/T 1333-2010.
Details Images
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
Certifications
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
Company Profile
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
High-quality Luggage Handle Vibration and Impact Testing Machine Bag Impact and Luggage Handle Tug Testing Equipment
Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.
• Shipping Options: By sea, air, or express courier according to customer preference.
