Office Chair Stability Testing Machine BIFMA Standard Chair Strength Safety for Equipment

Name: Office Chair Stability Testing Machine BIFMA Standard Chair Strength Safety for Equipment
Brand: HUAKAI
Price: 2 USD

Wholesale Office Chair Stability Testing Machine BIFMA Standard Chair Strength Safety for Equipment from china suppliers

Place of Origin : Guangdong, China

Brand Name : HUAKAI

Protection Class : IP65

Maximum Load of the Seat : 600 N

Price : $2,600-4,000 / piece

Application : Strength Testing

Type : Testing Machine

Accuracy : Seat loading pad dimensions: diameter 200 mm

warranty : 1 Year

Loading Rod : 19 mm in Diameter

customized support : OEM, OBM

power : 500W

MOQ : 1 piece

Accuracy Class : High Accuracy

Voltage : 220 V

Weights Basket Lifting Method : Manual Control

Contact Now

Product Overview

Office Chair Stability Testing Machine BIFMA Standard Chair Strength Safety for Equipment

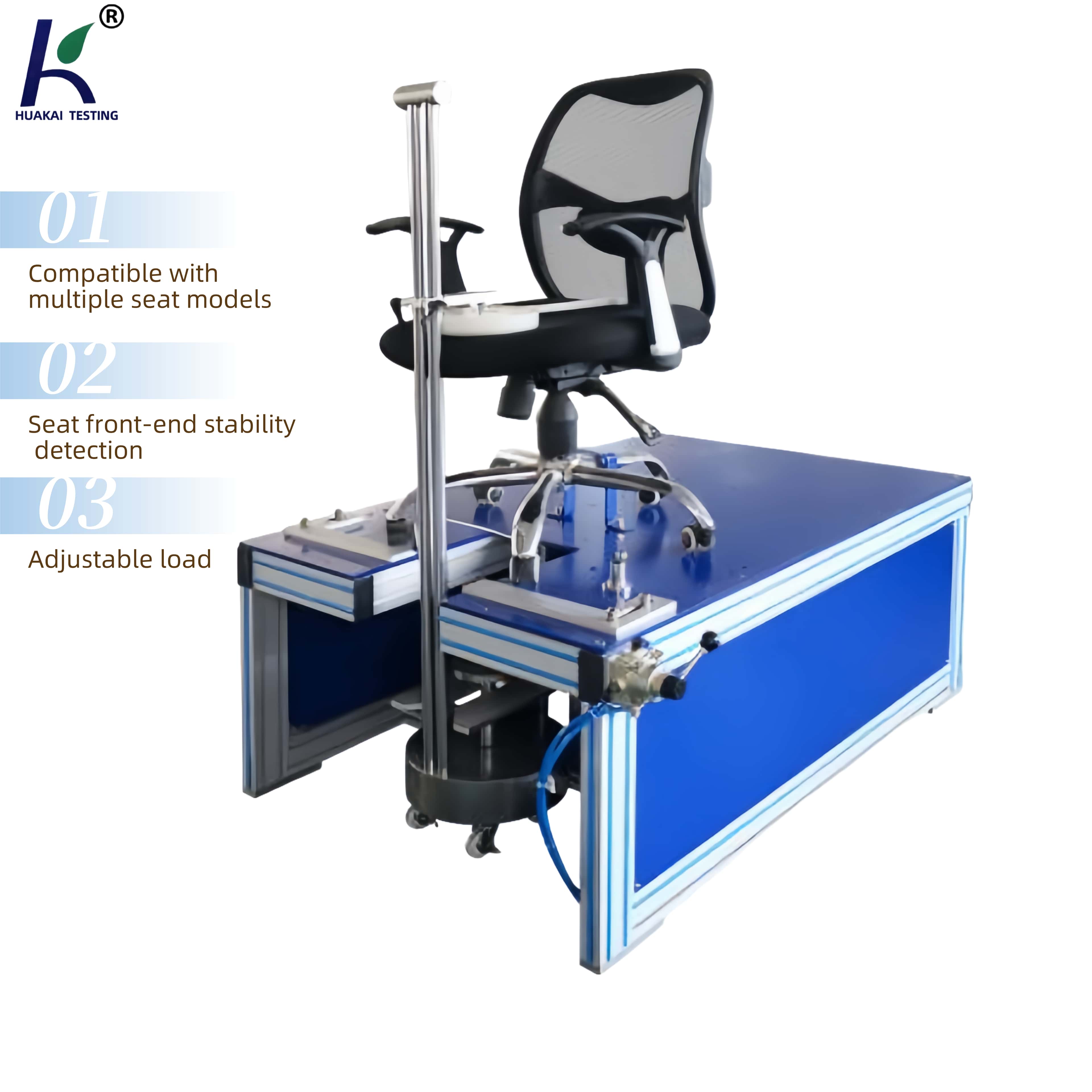

The Office Chair Stability Testing Machine is designed to evaluate the forward stability of office chairs and similar seating
products. By applying a specified cumulative load on the seat while adding a 20 N pull force in front of the load point, the
machine checks whether the chair tips forward, thus determining its compliance with international standards.
Functions & Applications
* Tests the forward stability of office chairs, seats, and similar furniture.
* Simulates real-world tipping conditions with seat load and pull force.
* Provides reliable data for product safety evaluation and certification.
* Widely used by furniture manufacturers, testing laboratories, and quality inspection centers.

Product Paramenters

Item	Specification
Maximum Seat Load	600 N (cumulative); Pull force: 20 N
Load Application Point	Seat center, 60 mm from the front edge
Seat Loading Pad Size	Diameter 200 mm, arc radius r300 mm
Loading Rod	Diameter 19 mm; Ends: Type A spherical SR19 mm / Type B 45° tip
Weight Basket Lifting	Manual control
Air Supply	6 kgf/cm² or a more stable air source (user-supplied)
Dimensions (L × W × H)	1800 × 1000 × 80 mm
Net Weight	Approx. 150 kg

Products Description

Structure & System Configuration
* Rigid test platform with spacers to block the chair’s front legs.
* Loading pad (Ø200 mm, r300 mm) positioned 60 mm from seat front edge.
* Loading rod with interchangeable ends: spherical SR19 mm (Type A) or 45° tip (Type B).
* Manual weight basket lifting system for accurate cumulative loading.
* Optional pneumatic interface for stable auxiliary air source (6 kgf/cm²).
* Compact and durable frame for accurate forward tipping stability tests.
Standards Compliance
Complies with or references the following standards: EN 581-1 / EN 581-2 / EN 581-3, EN 1022, EN 1729-2, and ANSI/BIFMA X5.1.

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
