Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster

Name: Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with DiscType Caster
Brand: HUAKAI
Price: 7 USD

Wholesale Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster from china suppliers

Accuracy : Turntable diameter: 800mm

Weight : 1800kg

customized support : OEM, OBM

Voltage : 380 V

Accuracy Class : High Accuracy

warranty : 1 Year

MOQ : 1 piece

Brand Name : HUAKAI

Place of Origin : Guangdong, China

power : 800W

Dimension : 1.5*1.5*2.3(m)

Protection Class : IP65

Application : Abrasion Tester

Type : Testing Machine

Price : $7,500-9,000 / piece

Frequency : 50HZ

Contact Now

Product Overview

Durability Testing Equipment for Industrial Machinery Walking Fatigue Tester with Disc-Type Caster

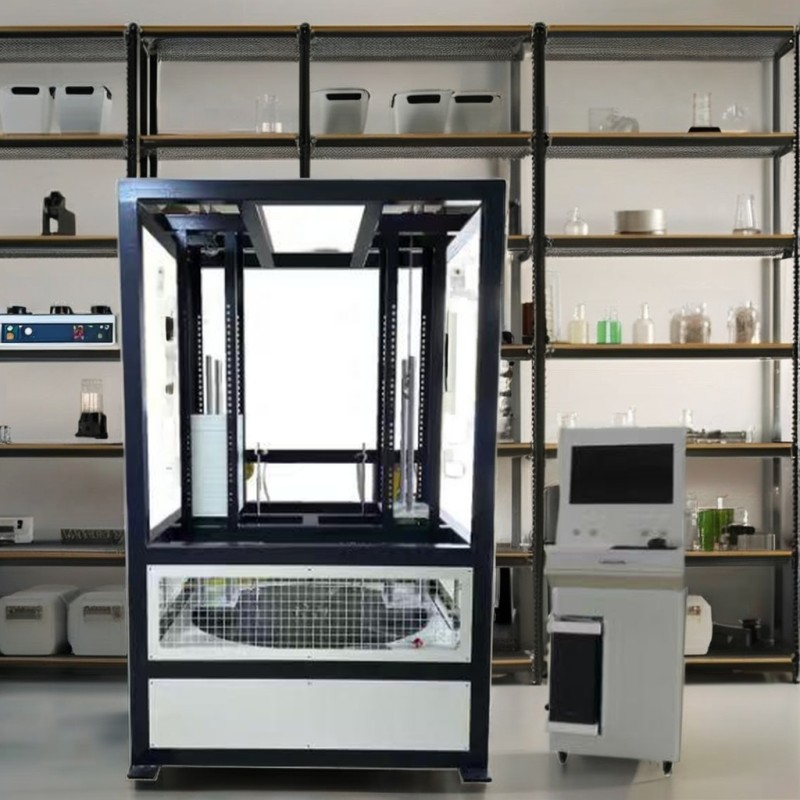

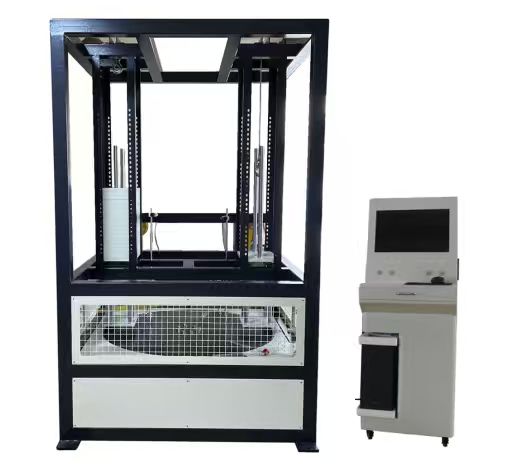

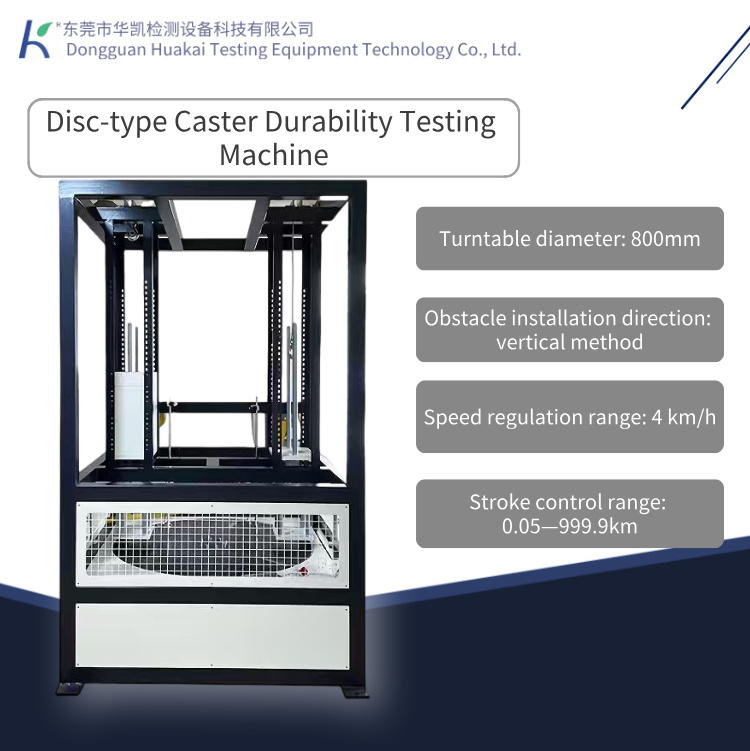

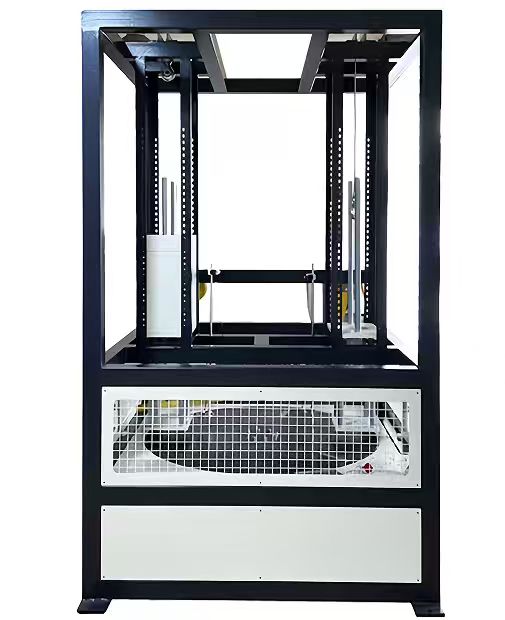

The Disc Type Caster Durability Testing Machine is designed for durability and fatigue life testing of industrial casters,
office chair casters, and swivel wheels. It simulates real-world long-term rolling performance under various loads, speeds, and obstacle conditions to evaluate caster quality and lifespan. The system features a motor-driven turntable with adjustable speed and a weight-based loading method. An intelligent touchscreen interface is provided for easy operation, precise parameter control, and data storage.
Functions & Applications
* Simulates real-world rolling and fatigue conditions for various caster types.
* Performs endurance, life cycle, and rolling distance tests with customizable settings.
* Touchscreen control system for precise test parameter adjustment.
* Widely used in furniture factories, caster manufacturing plants, and quality inspection labs.

Product Paramenters

Item	Specification
Control System	Touchscreen control
Load Capacity	Dual stations, 250kg per side, total 500kg
Loading Method	Weight-based loading
Obstacle Heights	2mm, 3mm, 5mm
Turntable Diameter	800mm
Obstacle Installation Direction	Vertical installation
Auto Stop Functions	Overload stop, distance stop, time stop, damage detection stop
Speed Range	4 km/h
Wheel Diameter Range	50–200 mm
Screw Thread Sizes	M8, M10, M12, M14
Mounting Hole Distance	73 x 44 mm
Hole Diameter	8 mm
Stroke Control Range	0.05 – 999.9 km
Main Machine Dimensions	1.5m x 1.5m x 2.3m (L x W x H)
Machine Weight	Approx. 1800kg
Power Supply	380V ±10%, 50Hz

Products Description

Structure & System Configuration
The equipment consists of a motor-driven rotating turntable, a weight-based loading system, and customizable caster fixtures. The touchscreen interface allows operators to easily set speed, distance, and load parameters. Custom fixtures can be designed according to customer requirements to accommodate various caster models.
Compliance Standards
* Complies with ISO caster durability testing standards.
* Meets QB/T and other related national testing standards.

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
