Mattress Firmness and Hardness Testing Machine Mattress Hardness Testing Equipment

Name: Mattress Firmness and Hardness Testing Machine Mattress Hardness Testing Equipment
Brand: HUAKAI
Price: 6 USD

Wholesale Mattress Firmness and Hardness Testing Machine Mattress Hardness Testing Equipment from china suppliers

Place of Origin : Guangdong, China

Type : Testing Machine

Price : $6,200-8,000 / piece

Application : Strength Testing

customized support : OEM, OBM

Test Stroke : 500mm

Accuracy : Loading Speed: 20~300 mm/min

Protection Class : IP65

Voltage : 220 V

Load Capacity : 200kg

warranty : 1 Year

Loading Plate Position Adjustment : 300mm Left and Right

MOQ : 1 piece

power : 1000W

Accuracy Class : High Accuracy

Brand Name : HUAKAI

Contact Now

Product Overview

Mattress Firmness and Hardness Testing Machine Mattress Hardness Testing Equipment

The Mattress Firmness and Hardness Testing Machine is designed to evaluate the hardness and firmness levels of mattresses. It applies load using a rigid circular plate with a convex spherical bottom, records the load-displacement curve, and analyzes data to determine mattress hardness value and grade. The system adopts aluminum alloy structure for durability and aesthetics, and features a high-precision intelligent ARAM controller with dedicated testing software, which operates under Windows system for full software control and easy operation.
Functions and Applications
* Applies spherical convex rigid plate to test mattress hardness and firmness
* Records load vs. displacement curves for precise hardness grading
* Equipped with intelligent ARAM controller and dedicated Windows-based software
* Widely used in mattress manufacturing, quality control, and product certification

Product Paramenters

Parameter	Specification
Loading Block	Diameter 355 mm, spherical curvature radius 800 mm, front edge curvature radius 20 mm
Loading Speed	20 – 300 mm/min
Testing Stroke	500 mm
Capacity	200 kg
Loading Plate Adjustment	±300 mm (left and right)
Maximum Mattress Size	2200 × 2200 × 400 mm

Products Description

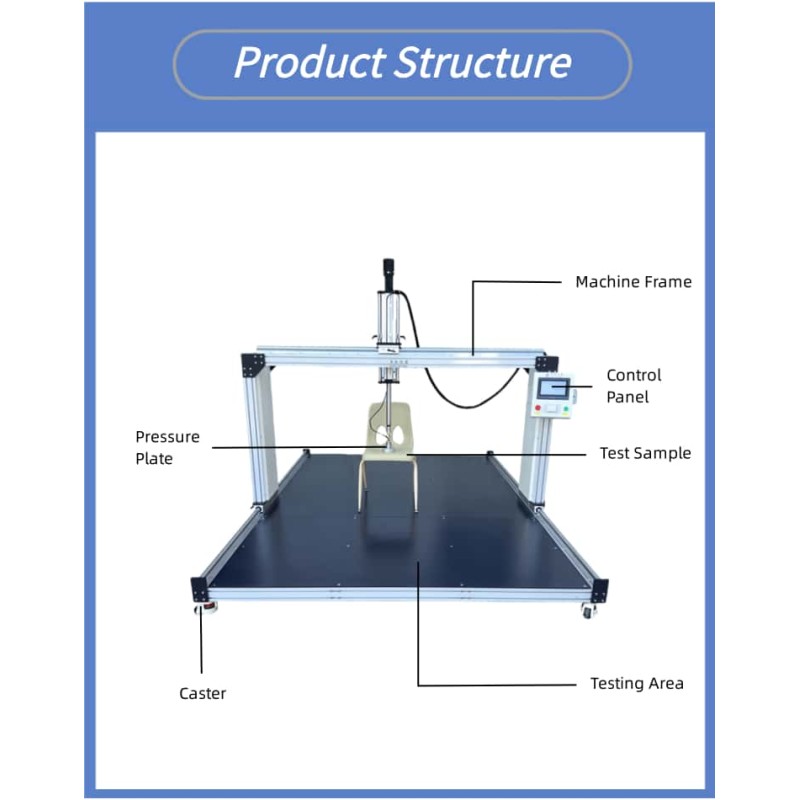

Structure and System Configuration
The tester is built with high-strength aluminum alloy profiles, offering both robustness and elegant appearance. It is equipped with a spherical rigid loading plate and a precision guiding system to ensure stability during testing. The ARAM intelligent controller, combined with professional test software, enables real-time data acquisition, analysis, and report generation under Windows environment.
Compliance with Standards
* Applicable mattress hardness testing standards (refer to international QC requirements)

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
